UL Power Controller

UL Power Controller

[UL] 3-Phase 35~500A

A RIGHT THINK FOR QUALITY - PION SERIES

본문

MODEL
PION-UL3W-035-□□,-050-□□
                   -070-□□,-090-□□
                   -110-□□,-130-□□
                   -160-□□,-200-□□
                   -400-□□,-500-□□



SPECIFICATION
A RIGHT THINK FOR QUALITY - PION SERIES

For detailed information, please download the "User Manual" below and refer to it.
CATEGORY SPECIFICATION

Rated
voltage
190~480VAC (R.S.T Input : Free Voltage)

Rated
current
35, 50, 70, 90, 110, 130, 160, 200, 250, 300, 400, 500 (A)

Frequency
50/60Hz (Automatic discriminating)

Control
system
Phase control, Zero crossing control, Combination control (phase + zero crossing)

Control
input
4~20mA, 1~5VDC, 0~5VDC, 0~10VDC, VR10KΩ, MODBUS (ASCII/RTU)

Load
types
Heater coupled load (Phase / Zero crossing), Inductive load (Phase)

Minimum
load
More than 1A

Output
range
0~99%

Output
resolution
Signal (4~20mA etc.) control :12Bit
MODBUS control :14Bit

Environment
Humidity : 20~90% (without condensation) Surrounding Air temperature : 0~50℃

Cooling
method
Forced air cooling type
- with automatic Fan On/Off function(When heat sink temperature exceeds 40℃, Fan On and when it is below 30℃ ,Fan off)

Dielectric
strength
3,000VAC ~50/60Hz for 1 min

Insulation
resistance
Power : Case 200MΩ (at 500VDC)

Control
Power
110VAC 50/60Hz
- 35~200A - 45W / 250~300A - 65W / 400~500A - 105W (Including fan)

Alarm
output
Alarm1, 2 (1a 250VAC 5A) : Over current, Overheating warning, Blown FUSE, Load (Heater) disconnection,
Thyristor failure, Overheating Caution, FAN failure

Basic
functions
• Fuse speed internal mounting
• Current display ( True_RMS )
• RUN / STOP (Contact input)
• Fuse disconnection alarm
• Soft Up/Down(0~900sec)
• Soft Start ( 0~900sec )
• Thyristor failure alarm
• Over current setting
• Manual output test
• Elevation function
• Input signal (4~20mA, 1~5V, 0~5V, 0~10V, VR10KΩ)
• Equipped with automatic recovery circuit
• Transformer coupled load MODE
• Main switch block display (ACOF)
• Status display & alarm display
• Max output limit (0~100%)
• Inductive load MODE
• Manual operation
• MODBUS (RS-485)
• Fuse speed internal mounting
• Current display ( True_RMS )
• RUN / STOP (Contact input)
• Fuse disconnection alarm
• Soft Up/Down(0~900sec)
• Soft Start ( 0~900sec )
• Thyristor failure alarm
• Over current setting
• Manual output test
• Elevation function
• Input signal (4~20mA, 1~5V, 0~5V, 0~10V, VR10KΩ)
• Equipped with automatic recovery circuit
• Transformer coupled load MODE
• Main switch block display (ACOF)
• Status display & alarm display
• Max output limit (0~100%)
• Inductive load MODE
• Manual operation
• MODBUS (RS-485)

Optional
functions
• 3 Channel control mode
• Current limit (voltage feedback)
• Current / Voltage / Power feedback
• FAN (DC FAN) failure alarm (Excluding 250~500A models)
• Transmission output [Transmits the output value of the R.S.T current (by 4~20mA)]
DIMENSIONS
A RIGHT THINK FOR QUALITY - PION SERIES

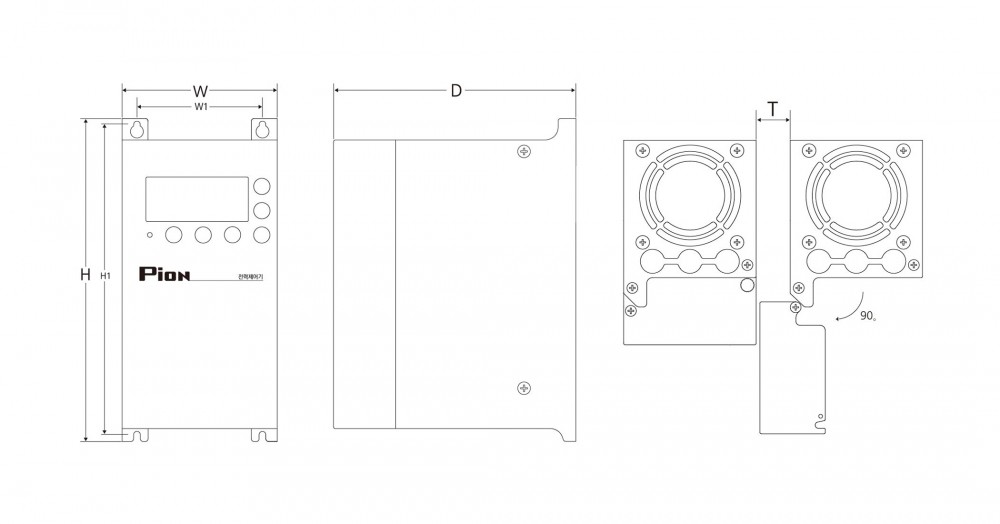

For detailed information, please download the "CAD drawing" below and refer to it.




PION-UL3W-035/050-0V or 0P (remaining pressure/power feedback) Option usage model must be installed at least 45 mm apart between products. (Refer to CAD drawing)
Capacity (A) Width (W) Height (H) Depth (D) W1 H1 Interval (T) Weight (kg) Attachment
bolt		 Main Power
bolt

35, 50
115
240
180
93
230
30
4
M4
M6

70, 90
124
282
190
101
270
30
5
M4
M6

110, 130
124
384
207
101
372
30
7
M4
M8

160, 200
166
409
210
143
397
30
10
M4
M8

250, 300
219
510
266
170
490
50
22
M6
M10

400, 500
294
570
266
230
550
50
38
M6
M12
Capacity (A)

35, 50

70, 90

110, 130

160, 200

250, 300

400, 500
Width (W)
115
124
124
166
219
294
Height (H)
240
282
384
409
510
570
Depth (D)
180
190
207
210
266
266
W1
93
101
101
143
170
230
H1
230
270
372
397
490
550
Interval (T)
30
30
30
30
50
50
Weight (kg)
4
5
7
10
22
38
Attachment
bolt
M4
M4
M4
M4
M6
M6
Main Power
bolt
M6
M6
M8
M8
M10
M12

Formula of an electric current amount change According to heater capacity
Actual loading capacity (A) = Result not "x 1.3", Design loading capacity (A) = Result "x 1.3".

Our rated capacity is on condition 25 degrees at room temperature & Rated voltage,
So Please put your capacity calculation Considering the Field situations (Temperature, Input Voltage etc) when choosing a model.

  • 3 Phase
    Resistive load

    =
    Heater (W)
    × 1.3
    1.732 × Voltage

  • 3 Phase
    Inductive load

    =
    Heater (W)
    × 2.0
    1.732 × Voltage

  • 1 Phase
    Resistive load

    =
    Heater (W)
    × 1.3
    Voltage

  • 1 Phase
    Inductive load

    =
    Heater(W)
    × 2.0
    Voltage
FILE : UL_[3P 35~500A]Pion Users Manual_P3CE8_Rev_05.pdf (4.3M)
DOWNLOAD
FILE : [2D_CAD] UL_3P_PION_35A~500A Rev07.dwg (16.6M)
DOWNLOAD
FILE : [3D_CAD] UL 3P_PION_UL3W_35~500_Rev01.zip (49.2M)
DOWNLOAD
